The KNF-2002 portable multi-parameter water quality rapid determination instrument is developed based on the national testing standard (G B) and the Ministry of Ecology and Environment testing standard (HJ). It is a portable rapid water quality detection instrument developed with the concept of simpler and more accurate detection for front-line testing personnel. The instrument adopts an industrial-grade 3.0-inch high-definition screen, providing intuitive data. It is compact in design and easy to carry. The power supply adopts a 50mah rechargeable large-capacity lithium battery, with a standby time of up to 3 months. It is widely applied in rapid water quality testing fields such as environmental supervision, environmental governance, outdoor scientific research, river monitoring, ecological census, and aquaculture.
Functional features
1. Supports COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, suspended solids... More than 40 testing indicators, etc.
2. The instrument is compact, fully packed in a box, lightweight and portable, making it suitable for mobile rapid detection.
3. We independently developed the Kainafu intelligent water quality detection system, which can be easily operated without professional personnel.
4. Guide and prompt the operation steps to avoid operational misunderstandings; Truly achieve - make testing simpler!
5. 3.0-inch industrial high-definition display screen, intelligent guided UI design, clear operation at a glance, more detection fun.
6. The instrument can be optionally equipped with a Bluetooth printer, allowing for direct printing of detection data or batch printing of historical data.
7. Built-in WIFI connection function, allowing real-time viewing, printing of detection data and historical detection data.
8. It is equipped with built-in Type-C, Bluetooth and WiFi data connection functions, which can be linked to the data acquisition system for data editing and saving.
9. Dual colorimetric detection device, simultaneously supporting tube colorimetry of 16mm/25mm, enables a wider range of detection items.
10. More environmentally friendly and efficient detection methods; Compared with competitors, the reagents are saved by another 30%, making the testing cost lower.
11. Faster reagent usage; More than 95% of the indicators of the reagents leaving the factory are liquid reagents and can be used directly. Safe and accurate.
12. It is equipped with a portable touch screen 6-hole intelligent digestion instrument, which features rapid heating, high temperature control accuracy, and built-in conventional programs. No Settings are required and it can be used with just one click.
13. Equipped with high-precision pipettes, it reduces errors in water sample transfer, is convenient and fast to use, and ensures more accurate and stable detection.

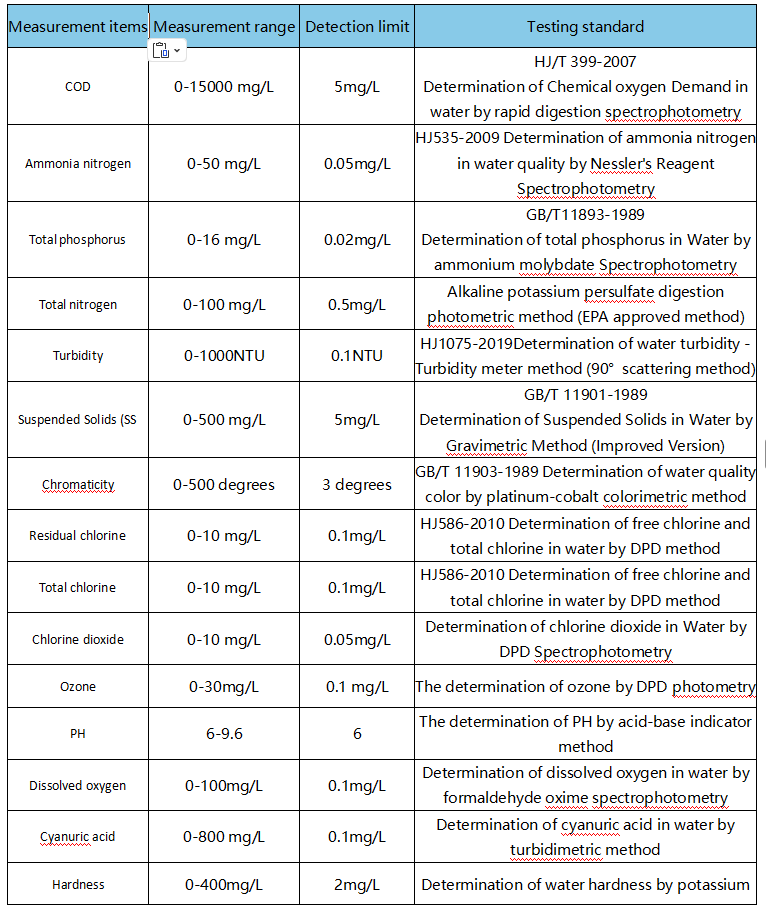

Some detection indicators
Technical parameters
Measurement error: ≤±3%
2. Repeatability error: ≤±2%
3. Wavelength accuracy: ±1nm
4. Optical stability: ≤±0.001A/20 minutes (100,000-hour lifespan)
5. Colorimetric method: Dual colorimetric detection system supports (16mm; 25mm colorimetric tubes)
6. Wavelength selection: Automatically selected based on the measurement items
7. Wavelength calibration: Automatic calibration
8. Detection light source: Imported solid-state cold light source
9. Data display: concentration, transmittance (%), absorbance (A
10. Operating System: Kenafu Intelligent Water Quality Detection System
11. Data transmission: Type-C, wifi, Bluetooth
12. Data printing: Bluetooth printer
13. Data Processing: 50,000 pieces of data, 200 curves (including self-expansion)
14. Display screen: 3-inch industrial-grade color
15. Working environment: 5-45℃ ≤50% no condensation
16. Power supply mode: 5V =2.5A
17. Battery capacity: 5000 mah
18. Instrument mass: 500g 230*90*90 (mm)
Configuration list
One portable multi-parameter water quality analyzer, two sets of high-end pipettes, one set of portable 6-hole intelligent digestion instrument, one protective cover, 300 pipette tips of 1ml, 5ml pipette tips 100 tubes, 7 sets of reagents to choose from, one set each of COD, ammonia nitrogen, total phosphorus and total nitrogen standard solutions, 40 digestion and colorimetric integrated tubes, 2 SS turbidity colorimetric bottles, one colorimetric rack, one colorimetric tube cleaning cloth, one charger, one USB data cable, one power adapter, two user manuals, one operation flow chart, one certificate of conformity/warranty card, etc.
